Series 2 : Securing contactor power wires

No heat

Tools Required :

1. #2 phillips screw driver
2. 3mm allen/hex key

Process :

1. Power off and unplug roaster from power.
2. Using the #2 phillips screwdriver remove the LH skin.

3. Extend the leg for the ee panel and secure in place.

4. Hinge down the ee panel
5. Using the 3mm allen/or #2 phillips remove the rear skin to the ee panel

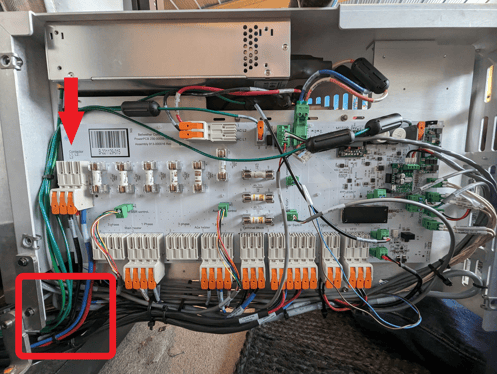

6. Unplug the connection labeled "Contactor L1, L2, L3 " and pull some slack through the wiring bundle.

7. Plug the connection back in for " Contactor L1, L2, L3 "
